材 质：铜
PC料
规格：12.5W x 1,6T x 2.0T.20W x 2.0T
许可载流量：100A-200A
螺丝孔尺寸:M5
PC独立座:T-10
|

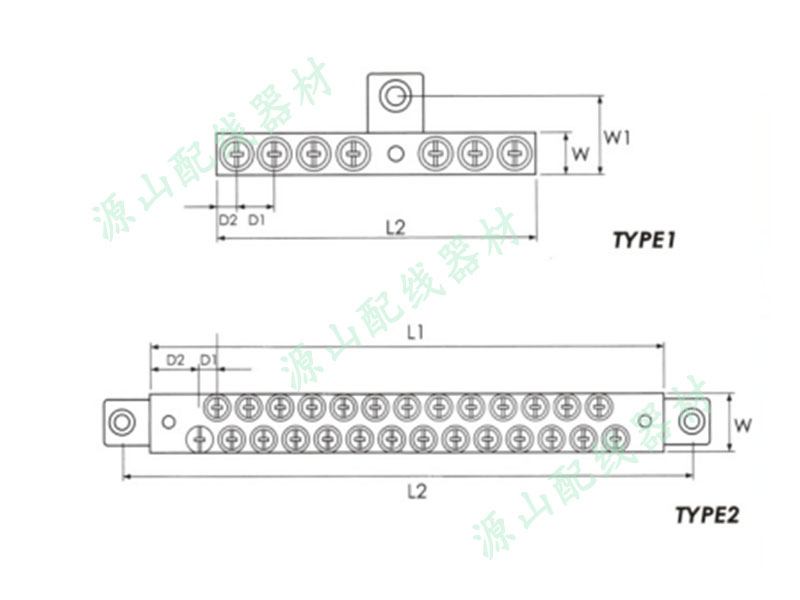

规格 Nominal Size |
W | W1 | D1 | D2 | LI | L2 |
型号 Type |
| 3P | 13.2 | 25 | 12.5 | 6.25 | 50 | 1 | |
| 4P | 13.2 | 25 | 12.5 | 6.25 | 62.5 | 1 | |
| 5P | 13.2 | 25 | 12.5 | 6.25 | 75 | 1 | |
| 6P | 13.2 | 25 | 12.5 | 6.25 | 87.5 | 1 | |
| 7P | 13.2 | 25 | 12.5 | 6.25 | 100 | 1 | |
| 8P | 22.5 | 6.25 | 19.5 | 89 | 111 | 2 | |
| 9P | 22.5 | 6.25 | 19.5 | 96 | 118 | 2 | |
| 10P | 22.5 | 6.25 | 17.5 | 98 | 120 | 2 | |
| 12P | 22.5 | 6.25 | 18.5 | 112 | 134 | 2 | |
| 14P | 22.5 | 6.25 | 18.25 | 124 | 146 | 2 | |
| 16P | 22.5 | 6.25 | 18.5 | 137 | 159 | 2 | |
| 18P | 22.5 | 6.25 | 18.5 | 150 | 172 | 2 | |
| 20P | 22.5 | 6.25 | 18.5 | 163 | 185 | 2 | |
| 22P | 22.5 | 6.25 | 18.5 | 175 | 197 | 2 | |
| 24P | 22.5 | 6.25 | 18.5 | 188 | 210 | 2 | |
| 26P | 22.5 | 6.25 | 18.5 | 200 | 222 | 2 |
