螺牙规格：公制牙(Matric)s PG牙、G(PF/BSP/PS)牙、NPT牙。
产品材质：A.C.F部分采用UL认可之无卤素(Halogen・Free)尼龙PA66(防火等级UL94V-2)制成； (可定制UL认可的V・0防火等级尼龙原料)；
保护等级JP68-10
工作温度：-40°C至100°C

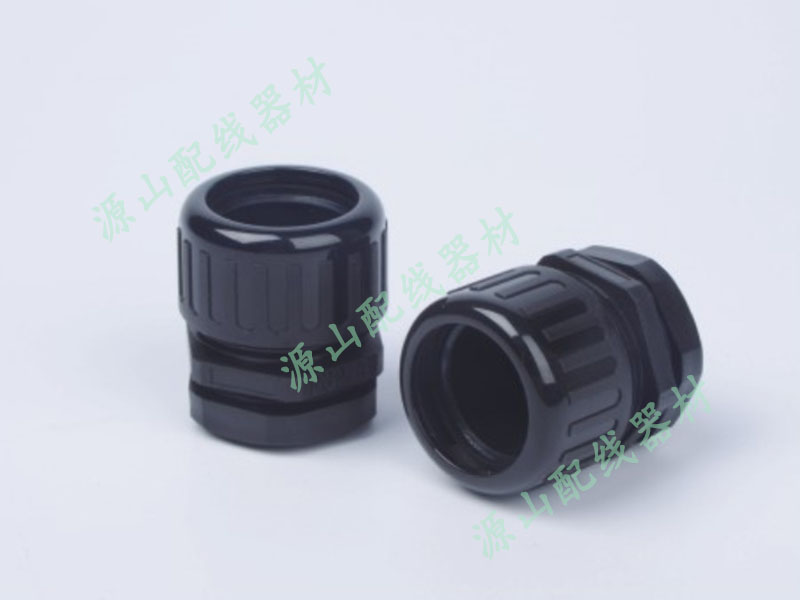

产品特性：本款高性能防水尼龙浪管盒接头能完美的抗水压，是一款即使拉扯波纹管也能完全保持 气密的产品。产品广泛地应用于移动式的自动化设备之防水、防油与气密的场合。
注：特殊规格需要请联系工厂
|
型号 Item.No. |
适配软管 Accommodated Pipes |
螺牙规格 Thread |

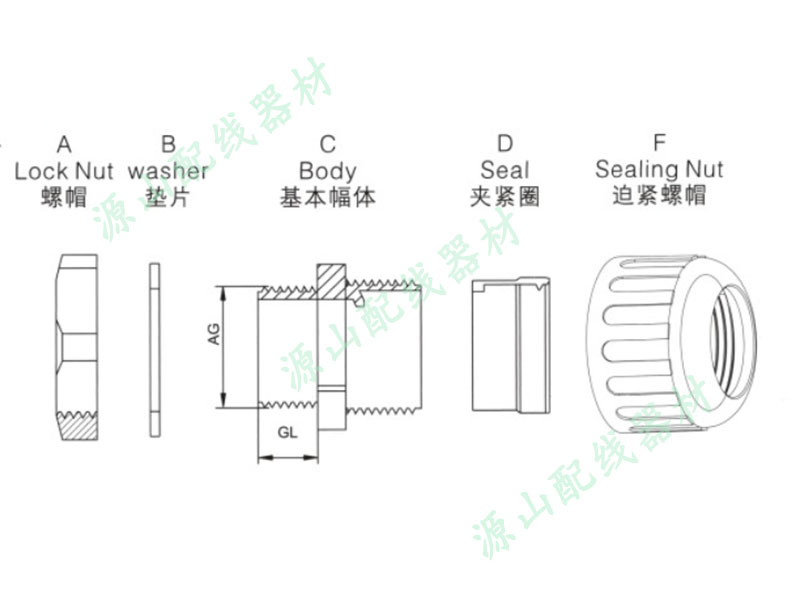

螺纹外径 Outer diameter AG(mm) |
螺纹长度 Thread Lengt Gl (mm) |
包装 Std.Pkg (pcs) |
| F-M12-10.0 | AD10.0 | M12×1.5 | 12 | 9 | 50 |
| F-M16-13.0 | AD13.0 | M16×1.5 | 16 | 10 | 50 |
| F-M16-13.0L | AD13.0 | M16×1.5 | 16 | 15 | 50 |
| F-M16-15.8 | AD15.8 | M16×1.5 | 16 | 10 | 50 |
| F-M16-15.8L | AD15.8 | M20×1.5 | 20 | 15 | 50 |
| F-M20-15.8 | AD15.8 | M20×1.5 | 20 | 10 | 50 |
| F-M20-15.8L | AD15.8 | M20×1.5 | 20 | 15 | 50 |
| F-M20-18.5 | AD18.5 | M20×1.5 | 20 | 10 | 50 |
| F-M20-18.5L | AD18.5 | M20×1.5 | 20 | 15 | 50 |
| F-M25-21.2 | AD21.2 | M25×1.5 | 25 | 10 | 50 |
| F-M25-21.2L | AD21.2 | M25×1.5 | 25 | 15 | 50 |
| F-M25-25 | AD25.0 | M25×1.5 | 25 | 10 | 50 |
| F-M25-25L | AD25.0 | M25×1.5 | 25 | 15 | 50 |
| F-M25-2&5 | AD28.5 | M25×1.5 | 25 | 10 | 50 |
| F-M25-28.5L | AD28.5 | M25×1.5 | 25 | 15 | 50 |
| F-M32-34.5 | AD34.5 | M32×1.5 | 32 | 10 | 20 |
| F-M32-34.5L | AD34.5 | M32×1.5 | 32 | 15 | 20 |
| F-M40-42.5 | AD42.5 | M40×1.5 | 40 | 15 | 10 |
| F-M50-54.5 | AD54.5 | M50×1.5 | 50 | 22 | 10 |
| F-PG7-10.0 | AD10.0 | PG7 | 12.5 | 9 | 50 |
| F-PG11-13.0 | AD13.0 | PG11 | 18.6 | 10 | 50 |
| F-PG13.5-15.8 | AD15.8 | PG13.5 | 20.4 | 10 | 50 |
| F-PG13.5-18.5 | AD18.5 | PG13.5 | 20.4 | 10 | 50 |
| F-PG16-21.2 | AD21.2 | PG16 | 22.5 | 13 | 50 |
| F-PG21-25 | AD25.0 | PG21 | 28.3 | 13 | 50 |
| F-PG21-28.5 | AD28.5 | PG21 | 28.3 | 13 | 50 |
| F-PG29-34.5 | AD34.5 | PG29 | 37 | 13 | 20 |
| F-PG36-42.5 | AD42.5 | PG36 | 47 | 13 | 10 |
| F-PG42-48.5 | AD48.5 | PG42 | 54 | 16 | 10 |
| F-PG48-54.5 | AD54.5 | PG48 | 59.3 | 16 | 10 |
| F-PF1/4-10.0 | AD10.0 | G(PF)1/4" | 13.1 | 9 | 50 |
| F-PF3/8-13.0 | AD13.0 | G(PF)3/8" | 16.6 | 15 | 50 |
| F-PF1/2-15.8 | AD15.8 | G(PF)1/2" | 20.9 | 15 | 50 |
| F-PF1/2-18.5 | AD18.5 | G(PF)1/2H | 20.9 | 15 | 50 |
| F-PF1/2-21.2 | AD21.2 | G(PF)1/2 | 20.9 | 15 | 50 |
| F-PF3/4-25 | AD25.0 | G(PF)3/4" | 26.4 | 15 | 50 |
| F-PF3/4-28.5 | AD28.5 | G(PF)3/4" | 26.4 | 15 | 50 |
| F-PF1-34.5 | AD34.5 | G(PF)1" | 33.2 | 15 | 20 |
| F-PF1 1/4-42.5 | AD42.5 | G(PF)1 1/4 | 41.9 | 15 | 10 |
| F-PF2-54.5 | AD54.5 | G(PF)2" | 60 | 15 |
10 |
